Function

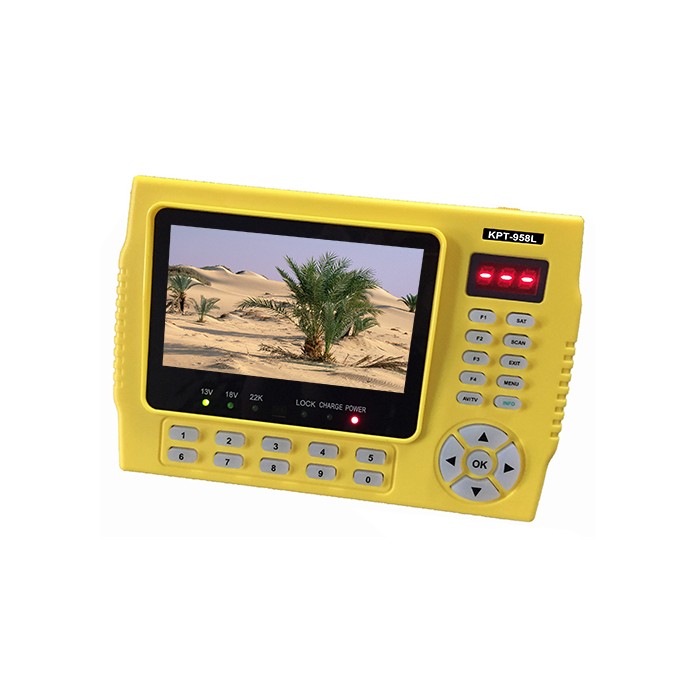

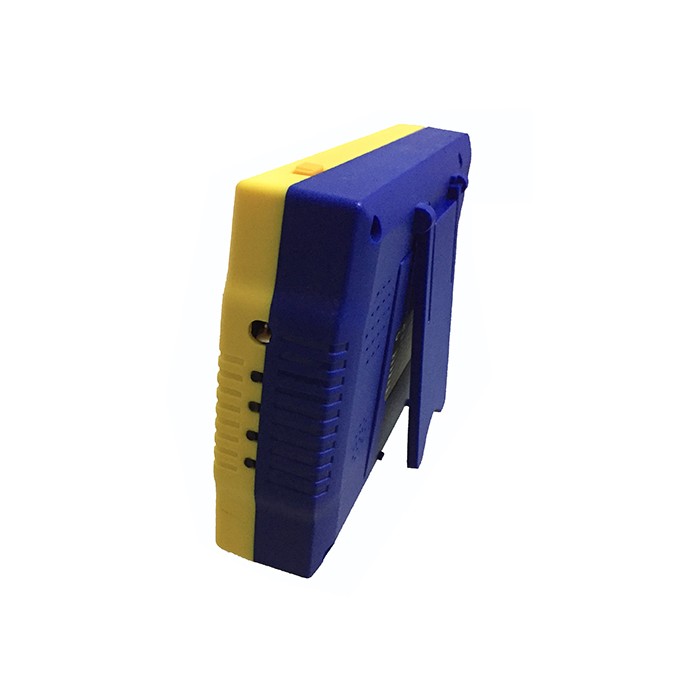

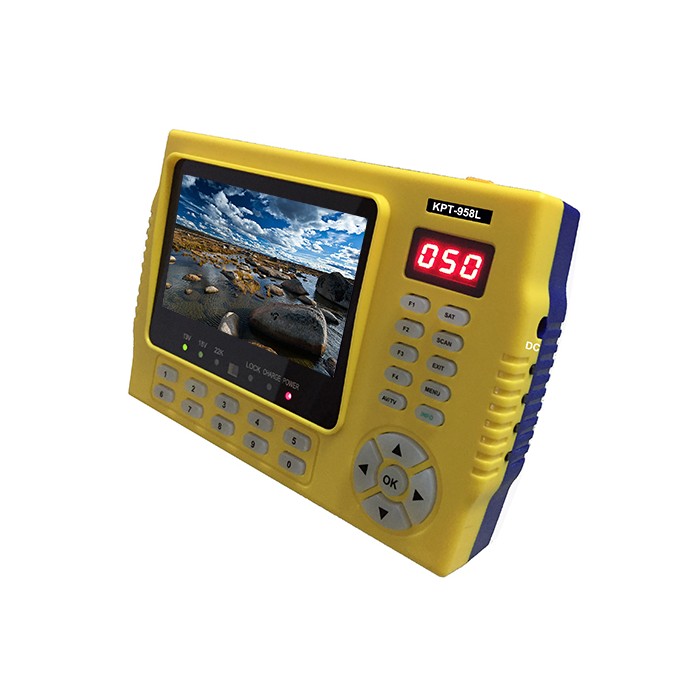

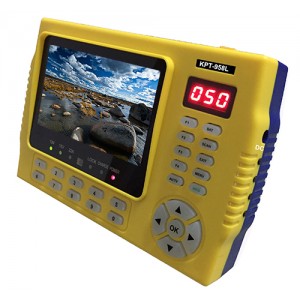

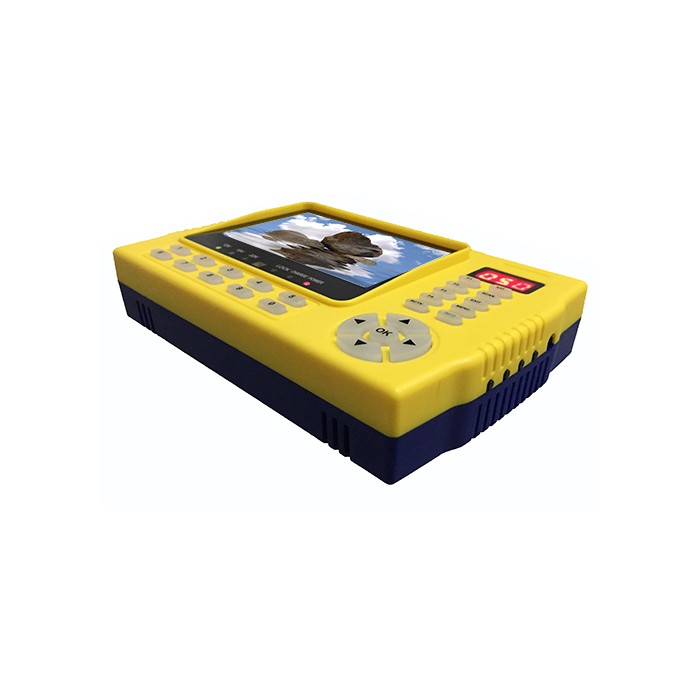

   4.3inch portable multifunctional monitor& satellite finder is a product for the installation of satellite TV test tools. Set the satellite TV signal and image shows test, radio, television, monitoring function. With auto scan/blind scan/TP scan .Using TFT LCD display image, LED backlighting with low power consumption. And build-in large capacity with high-performance lithium battery for the integration of high-tech electronic products.

   Low power consumption LED / high-resolution digital display TFT LCD. It has built-in 2200mAh Li-lon battery. If don’t need an external power then it can keep on working around 3-4 hours, with DC12V output (use of camera); AV output and input function; Satellite images and signal quality can be displayed through the LCD; Unique star search guidance function; Build-in LNB management circuits for TV tuner, receive satellite signal alarm (search satellite signal quality changeable warn and alarm, support DVB-S/S2&MPEG-4 image & signal for free program and warming). 13V18V/22K signal lock indicator which located at the panel can show in the same time. This finder used the portable structure, with small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry, so it is the professional equipment for satellite TV receiver system engineering and control engineer technicians.

  Users can add and revise the parameter in the satellite finder directly. Support DISEqC1.0、DISEqC1.1 multi-satellite input(the most can support 16 sate input); With DISEqC1.2, USALS satellite search window; Support auto antenna control; multi-site scan, indicate multi-TP scan/blind scan etc. Lock satellite signal sound alarm function; Operate and lock light indicate. (Operating the menu and locking the satellite signal, there will show the LED indicator).There will also display the LED digital tube with finder screen showing the signal quality in the same time; 13V, 18V voltage output LED indicator; 22K on and off indicator; 22K switch auto cutover; With LNB auto protection when short circuit; Decode the digital video; PCM and RAW (HDMI on). Build-in subheading DVB title, and attached graphic TV receiver functions etc.

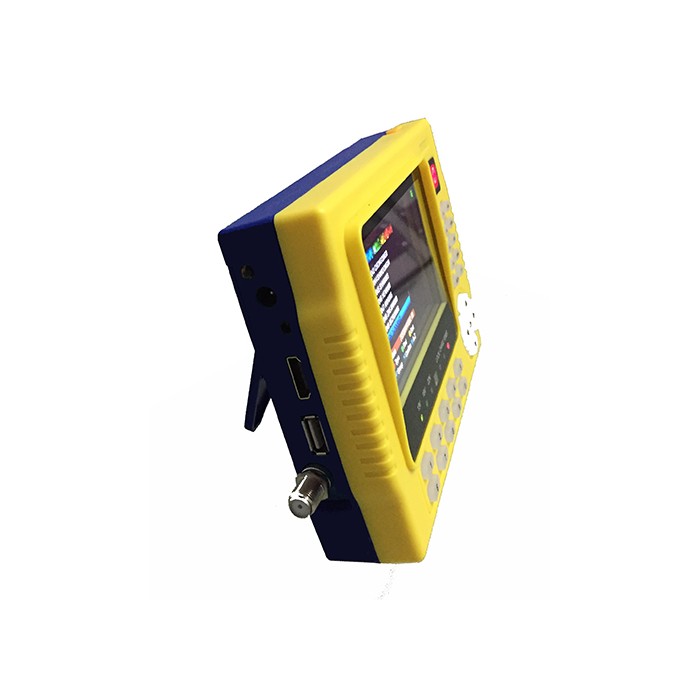

USB port can use in software’s upgrade and media play (such film, image, music and record etc). 3.5 standard audio and video input and output port which is convenient to export to other TV broadcast equipment with enter audio and video signal, HDMI output. When receive the satellite, it also can export the TV signal and HD signal synchronously; Standard accessories including bag, remote control, AV Line, F fast line, DC 13.5V 1.5A adapter, car power and HDMI line are optional; With special LED high brightness flashlight, and there also has LED back light under the keyboard, it is more convenient to operate at night.

Built-in satellite signal warning; Find star signal quality LED displayed, with DC12V output.

Easy Satellite Manager (EDIT, delete and SCAN), Edit TP, Frequency, LNB switch, Symbol Rate etc

Spareparts
