function：

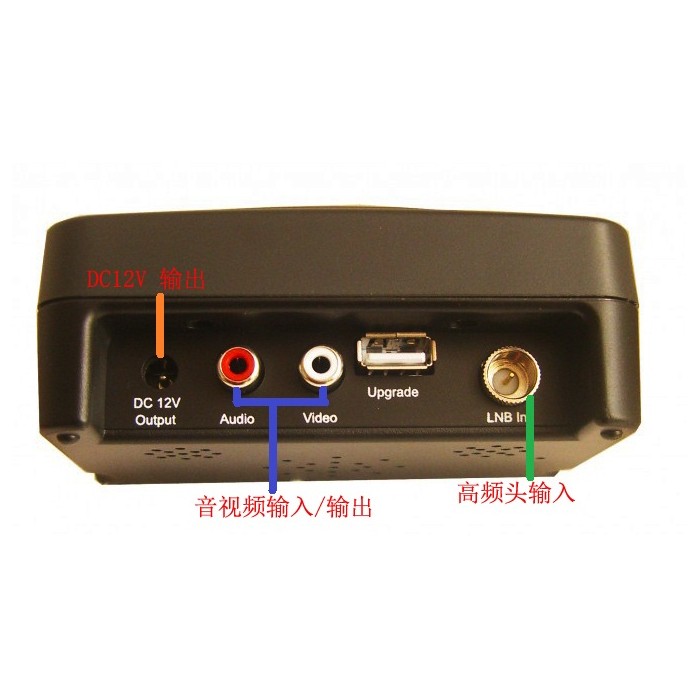

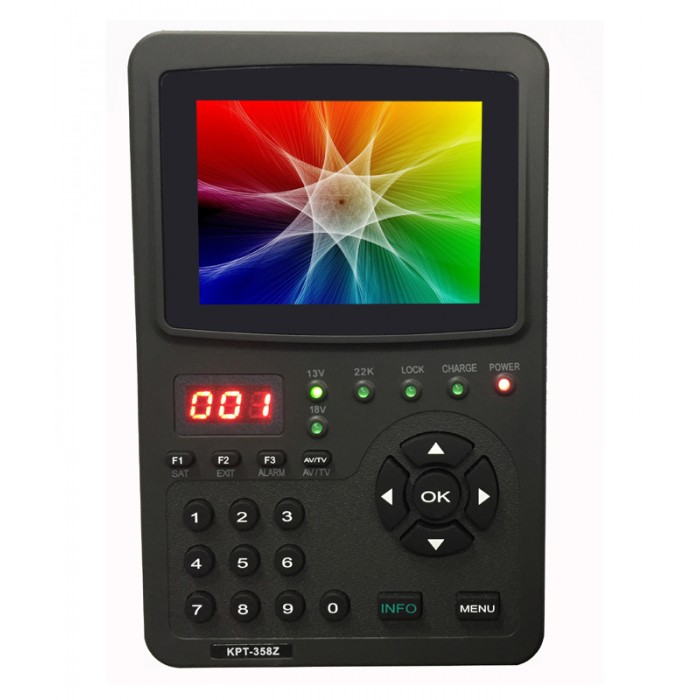

    High-definition LED LCD display; built-in 2200 mA lithium battery, no external power supply, 3-4 hours of starhunting operation time (12V external power supply at the same time); AV output and input functions; satellite receiving image and signal quality display; signal quality synchronous LED display; unique satellite star-seeking management; built-in high-frequency head protection circuit; Built-in early warning of receiving satellite signal (special warning of quality change of star-seeking signal, supporting high-definition satellite TV signals such as Zhongjiu ABS-S, DVB-S, DVB-S2 and MPEG-4, and providing synchronous display of signal bars); double amplification bar display of INFO information, 13V/18V/22K/signal locking indicator lamp, located in synchronous display of machine panel. The machine adopts handheld structure, small size and light weight. It is equipped with installation tool backpack, which is more convenient to carry. It is a necessary special instrument for satellite TV receiving and installation system engineering and monitoring engineering technicians.

     According to the actual data of the first generation, the second generation and the third generation of Zhong9 satellite parameter test in China, buzzing and LED quality changes can be used to judge the signal strength, and the signal amplifier bar can be amplified and displayed. Image analysis DVB-S/MPEG-2 video decoding, ABS-S, CVB2, MPEG-4 signal buzzing warning and LED data display

    Built-in early warning of receiving star signal (signal change warning sound is faster) LED digital tube detects signal synchronously to display signal quality, with signal bar amplification function; PC panel protection is added to the display screen.

    Simple Star Search Menu (Edit, Delete, Scan) Edit TP (Uplink Frequency, Code Rate, LNB22K Switch)
