1.Satellite Finder (H.265) AVS/AVS+>

¤Frequency range:950MHz-2150MHz

¤LNB power & switch:13V18V/22K / signal lock indicator

¤Input impedance: 75Ώ (F).     LNB short-circuit protection

¤DiSEqC:1.0, 1.1 & Motor antemma: 1.2, USALS

¤Build-in signal locked alarm

¤Build-in satellite finder management

Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc

English Menu：English; polish; Arabic; French; Russian

Chinese Menu: Chinese; English

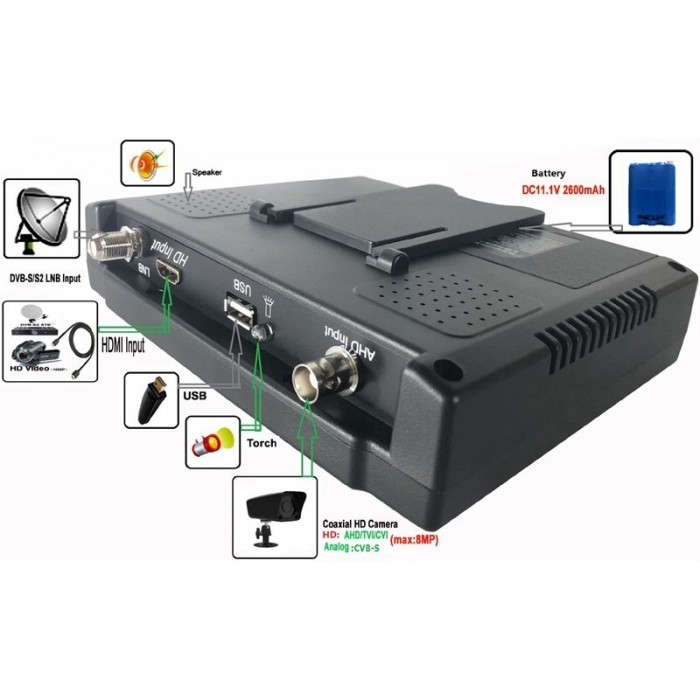

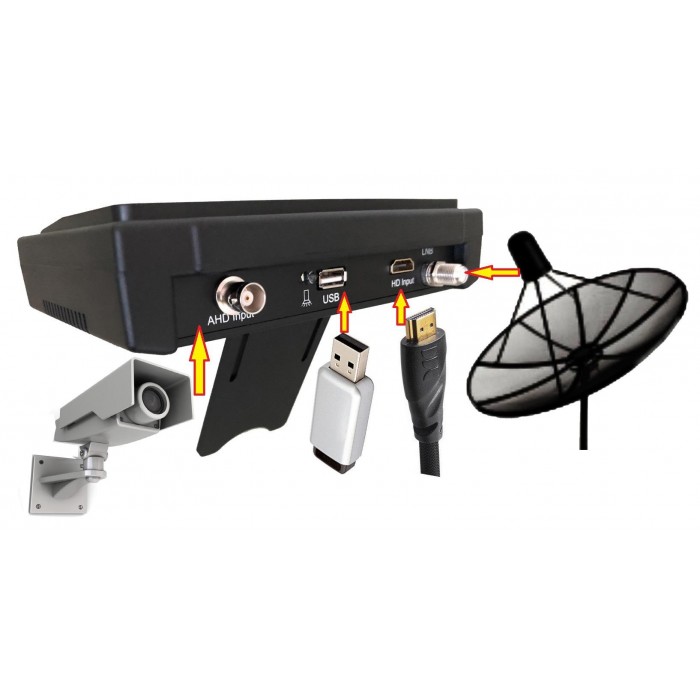

2.HD Input:

Support 800*480 to Max 1920*1080(Max:1080P)

3.AHD Input: Test CCTV Camera

1.AHD:Support TVI AHD CVI camera 720P 960P 1080P 4K HD video input,display picture (Max: 8MP)

2.Analog CVB-S Video

4.AV Input:(on AV state;TV state is AV output)

¤Support Video & Audio &DC12V power test

¤AV Input (Video&Audio Input Monitor)

USB : (On satellite finder state )

Support software upgrade & PVR & Games & IP Setting & Network Apps & DLNA Render

USB connection Internet（by USB WiFi:7601 & 5370) , Youtube / Weather / LOCAL IPTV /XTREAM / Upgrade By Net.

Specifications

¤7" IPS high-resolution digital display LCD( LED Back Light)

¤Dots pixels:1024*600(1843200Pixes)

¤Color system: PALNTSC

¤Lithium battery:DC 11.1V  2600mAh(built-in)

¤Input voltage:DC13.5V  1A

¤Dimensions:180*143*50mm        Weight:580g
