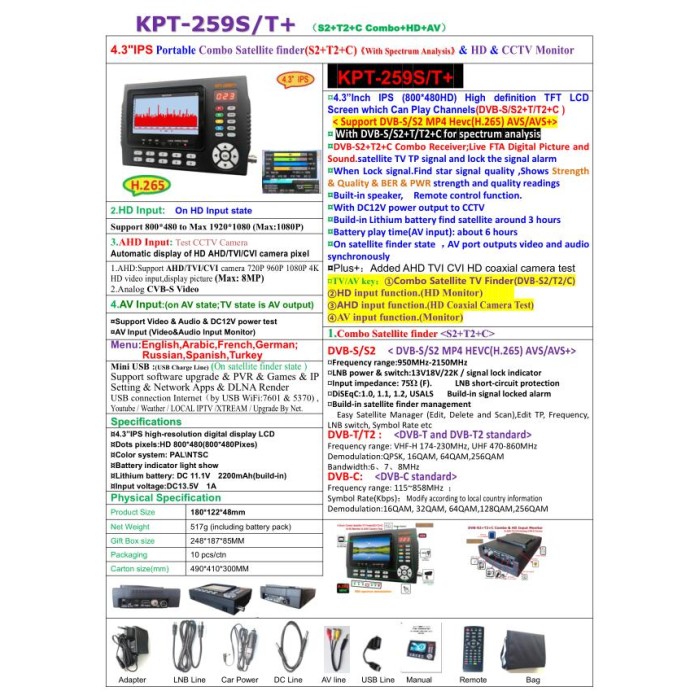

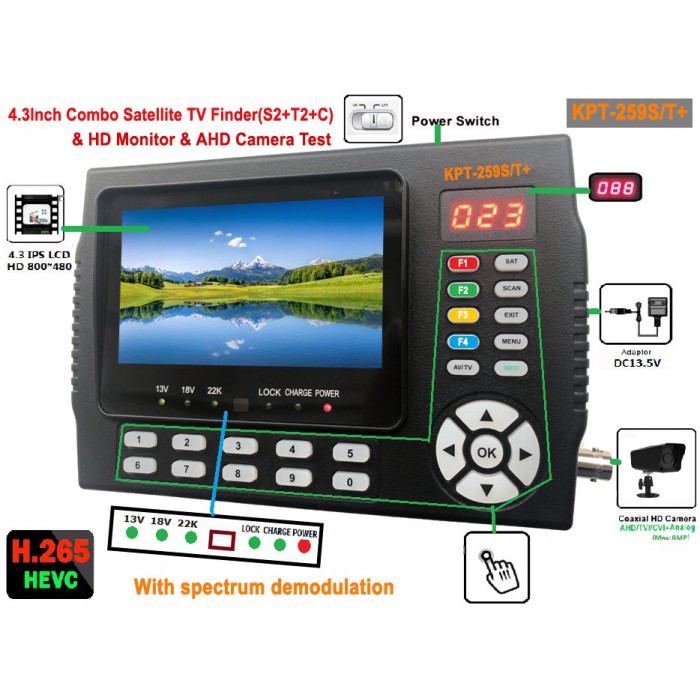

¤4.3”Inch IPS (800*480HD) High definition TFT LCD Screen which Can Play Channels(DVB-S/S2+T/T2+C )

 < Support DVB-S/S2 MP4 Hevc(H.265) AVS/AVS+>

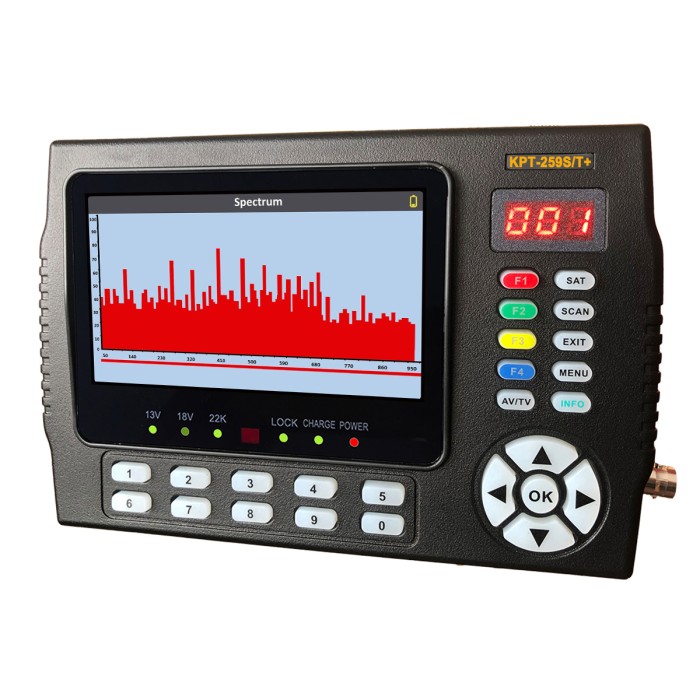

¤ With DVB-S/S2+T/T2+C for spectrum analysis

¤DVB-S2+T2+C Combo Receiver;Live FTA Digital Picture and Sound.satellite TV TP signal and lock the signal alarm

¤When Lock signal.Find star signal quality ,Shows Strength & Quality & BER & PWR strength and quality readings

¤Built-in speaker,  Remote control function.

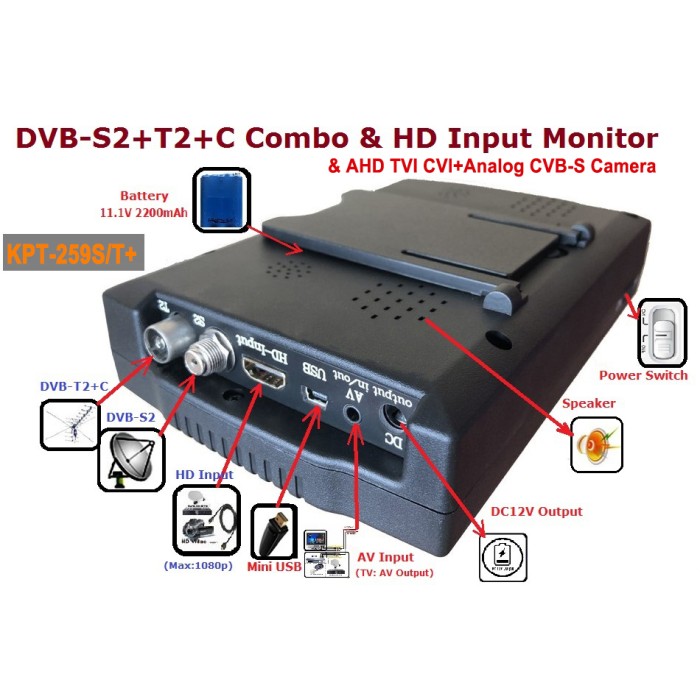

¤With DC12V power output to CCTV

¤Build-in Lithium battery find satellite around 3 hours

¤Battery play time(AV input): about 6 hours

¤On satellite finder state ，AV port outputs video and audio synchronously

¤Plus+：Added AHD TVI CVI HD coaxial camera test

1.Combo Satellite finder

DVB-S/S2  < DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+>

¤Frequency range:950MHz-2150MHz

¤LNB power & switch:13V18V/22K / signal lock indicator

¤Input impedance: 75Ώ (F).     LNB short-circuit protection

¤DiSEqC:1.0, 1.1, 1.2, USALS   Build-in signal locked alarm

¤Build-in satellite finder management

Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc

DVB-T/T2 :

Frequency range: VHF-H 174-230MHz, UHF 470-860MHz

Demodulation:QPSK, 16QAM, 64QAM,256QAM

Bandwidth:6、7、8MHz

DVB-C:

Frequency range: 115~858MHz ；

Symbol Rate(Kbps)：Modify according to local country information

Demodulation:16QAM, 32QAM, 64QAM,128QAM,256QAM

2.HD Input:  On HD Input state

Support 800*480 to Max 1920*1080 (Max:1080P)

3.AHD Input: Test CCTV Camera

Automatic display of HD AHD/TVI/CVI camera pixel

1.AHD:Support AHD/TVI/CVI camera 720P 960P 1080P 4K HD video input,display picture (Max: 8MP)

2.Analog CVB-S Video

4.AV Input:(on AV state;TV state is AV output)

¤Support Video & Audio &DC12V power test

¤AV Input (Video&Audio Input Monitor)

Menu:English,Arabic,French,German; Russian,Spanish,Turkey

¤4.3”IPS high-resolution digital display LCD

¤Dots pixels:HD 800*480(800*480Pixes)

¤Color system: PALNTSC

¤Battery indicator light show

¤Lithium battery: DC 11.1V  2200mAh(build-in)

¤Input voltage:DC13.5V  0.8A
