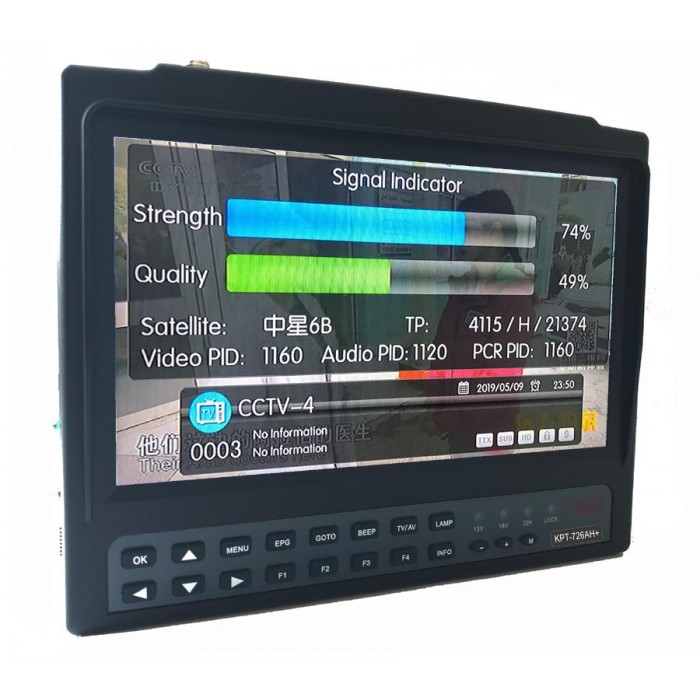

LCD Display

7”TFT LCD

Display size:155*89mm

Dots pixels:1024*600(1843200Pixes)

Menu language

1. English;Persian;Arabic;French;Deutsch;Portuguese;Russian;Spanish;Turkish;Vietnam

2. English/Chinese

Receiver standard

Satellite Receiver

DVB-S/S2

Satellite Signal:

DVB-S/S2 & ABS-S & AVS/AVS+ & HEVC

AV Input

Anlogy Video  （AV State）

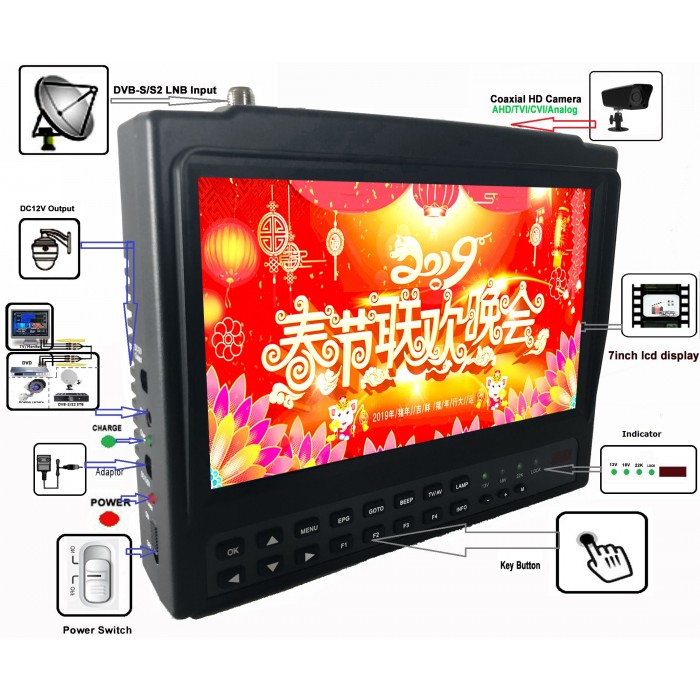

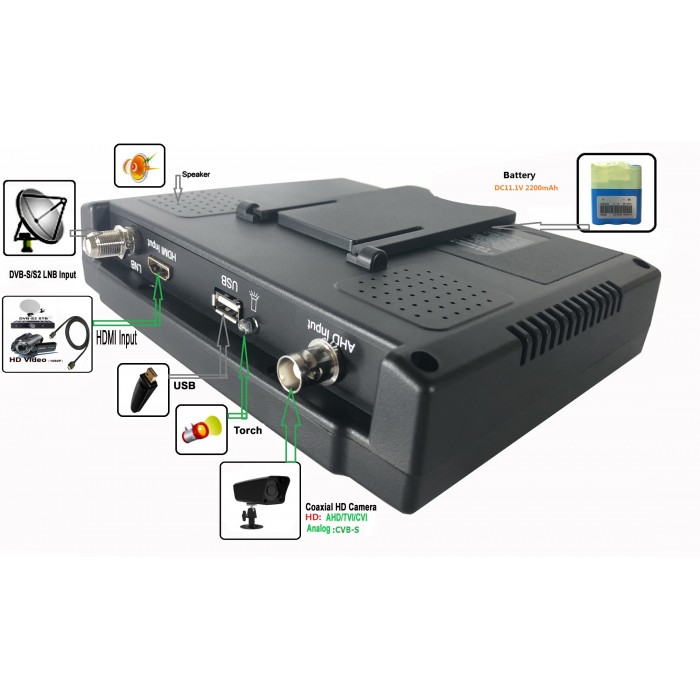

Input &Output ports:

connector

F Connector

(DVB-S/S2）

F type male puly: 75Ώ (F)

Frequency range:950MHz-2150MHz

Demodulation:QPSK, 8PSK,16APSK,32APSK

Signal level: -65dBm~-25dBm

DiSEqC:DiSEqC1.0/1.1  /  DiSEqC1.2/USALS

USB 2.0

software upgrade

Support PVR/Timeshift/Multi-Media Player

Supports external HDD via USB, power wanted if necessary

HDMI Intput

HDMI  input support :480 576 720 1080i

AHD Input

AHD/TVI/CVI Camera Video &

Anlogy CVB-S Video (Max：3MP/5MP/8MP)

AV Input & Output

TV state: AV output;   AV state: AV input

Ø3.5 Head RCA channel   Video format:PAL/NTSC

Power Supply

Lithium Battery

11.1V /  2200mAh （built in）

Charger

Input  AC100-220V  Charge  13.5V / 1A

Output   DC12V / 1.A

Physical Specification

Size

180*143*50mm

Net Weight

580g (including battery pack)
