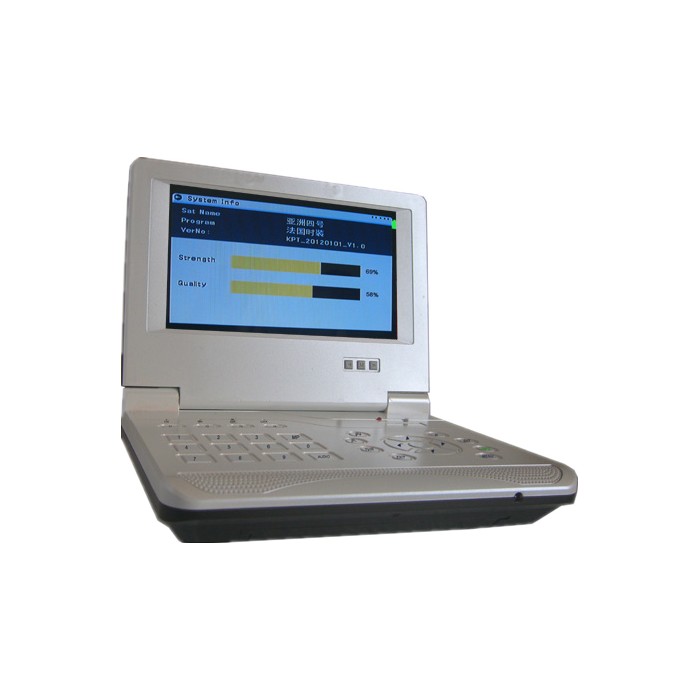

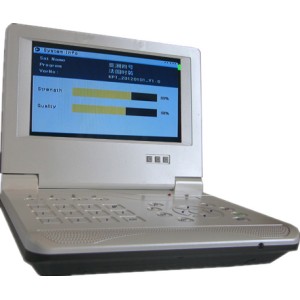

KPT-928G

*7Inch High definition TFT LCD Screen which Can Play Channels(DVB-S)

*Live FTA Digital Picture and Sound,

*AV Output and AV Input function.

*Shows strength and quality readings,

*Sound and Light Alarm When Lock Signal.(DVB-S/S2 MPEG-4 ABS-S)

More detailsInquiry


Specification

LCD Display

7”TFT LCD

Display size:55*89mm(15:9display)

Dots pixels:800*480(1152000Pixes)

Satellite signal

video decoding

DVB-S

signal test

DVB-S/S2,MPEG-4,ABS-S,signal alarm & signal test.

Menu language

Chinese/English /French /Arabic/Turkey/Russian

LNB/Tuner Input

connector

F type male puly: 75Ώ (F)

Frequency range

950MHz-2150MHz

Signal level

-65dBm~-25dBm

Symbol rate

13/18V.max400mA

LNB switch control

22KHz

DiSEqC

1.0 1.2edition

Threshold

4.5dB;

Demodulator

Front end

QPSK(SCPC and MCPC compatible)

Symbol rate

2Mbps-45Mbps

System Resource

processor

32bit processor(200MHz)

SDRAM

16Mbyte

FLASH

8Myte

EEPROM

8Kbyte

Video Decoder

Video

MPEG-2 Main Level

Date Rate

Up to 15Mbps

Resolution

720*576,720*480

Video format

PAL/NTSC/SECAM

Audio

Voice patterns

Single sound channel

Sampling rates

32.44.1&48KHz

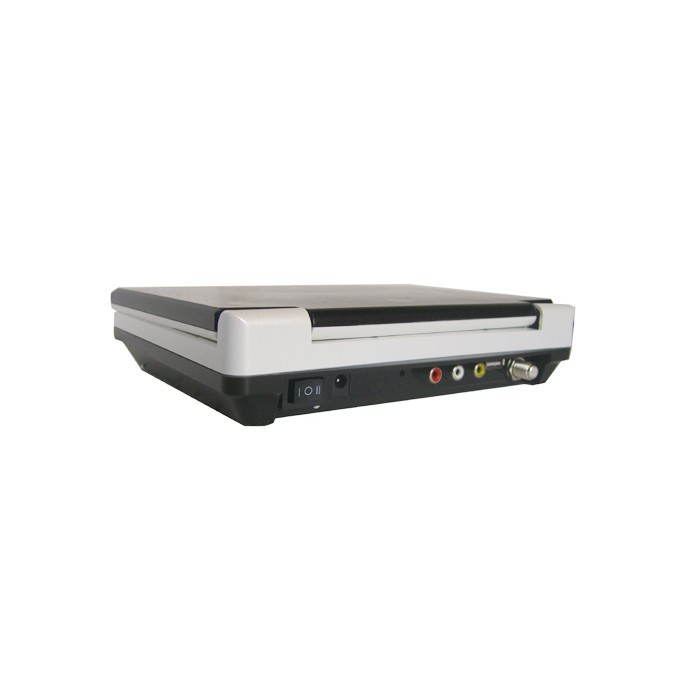

Panel Connectors

Connector

RS232

Power Supply

Lithium Battery

7.4V/4200mAh

Charger

In  AC100-220V Charge 13.5V/1.5A

Physical Specification

Size

205*165*45mm

Net Weight

880g (including battery pack)

Function

  7inch Portable widescreen monitor&satellite finder is a product for the installation of satellite TV test tools. Set the satellite TV signal (DVB-S/S2 MPEG-4 ABS-S)and image shows(DVB-S) test, radio, television, monitoring function. With satellite automatic identification and blind scanning. Using TFT LED screen, wide-screen (15:9) display, high resolution (800*480), LED backlighting with low power consumption. Built-in large capacity and high-performance lithium batteries for the integration of high-tech electronic products.

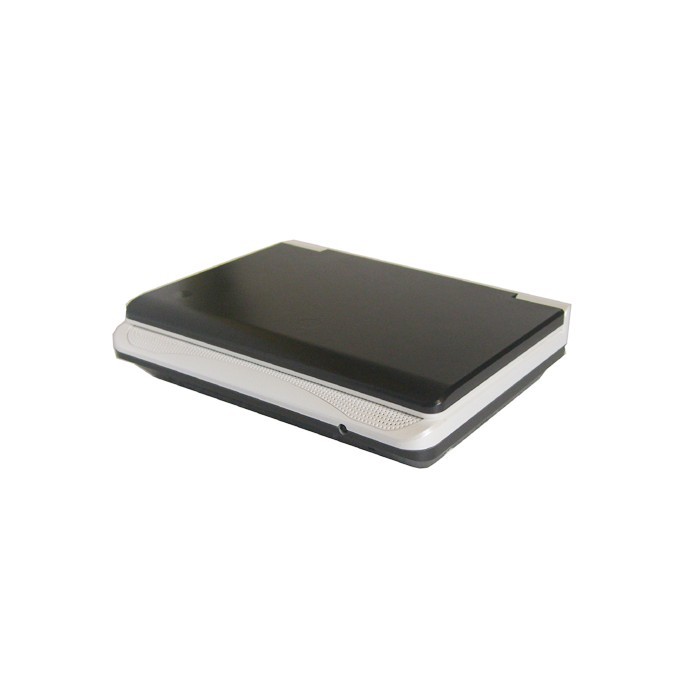

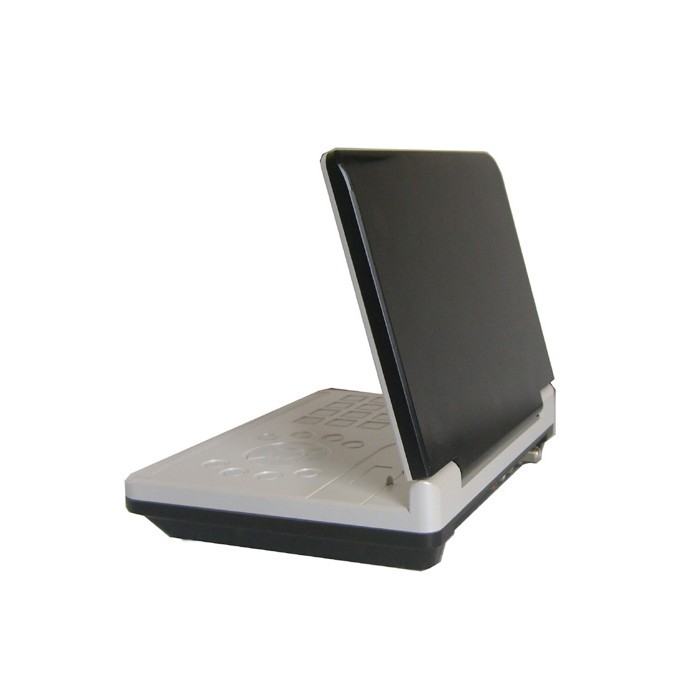

   Low power consumption LED / high-resolution digital display TFT LCD .built-in 4200mAh(7.4V) Li-lon battery, do not need an external power supply, working time is about 3-4 hours, AV output and input function. Satellite images and signal quality can be displayed through the LCD screen. Unique satellite search function, built-in satellite finder management, With high frequency protection circuit head, external short circuit alarm,13V18V/22K/Signal lock indicator, located in machine panel and can be displayed simultaneously.Machine adopts clamshell structure, turn it directly, it can adjust clamshell angle according to sunshine, which helps image shows more clearly. Due to the adoption of clamshell structure, this machine is small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry; it is professional equipment for engineering and technicians to receive satellite TV channels.

Built-in satellite signal warning ,INFO article shows of singnal shape,with enlarge images,

Easy Satellite Manager (EDIT, delete and SCAN),Edit TP, Frequency, LNB switch, Symbol Rate etc

Accessories







DC13.5V 1.5A adapter

Bag

F fast line







Car Power

Remote

BNC to RCA(optional)
